Cable measurement One click Profile projector

15.000

Automated profile projector used in Cable Dimension measurement of any shape cable. Available with Accredited calibration master, color measurement, from 36 mm to 108 mm diameter samples.

IEC-60502-1 and EN 50525 describes about the requirement of exact dimension measurement of the insulation, inner jacket and outer jacket of a cable and it’s cores. Generally such test are performed also just before Tensile strength and elongation tests as well as before ageing tests.It is very important to and most critical characteristics of a cable which determines the overall performance in application.

Hence it is always adapted and suggested to Cable manufacturers to do the dimension inspection on the first and last samples of extrusion process. Not only for Quality parameters but wall thickness is also a major player in deciding Cost of the cable , hence an optimization with high accuracy is the need of this highly competitive market.

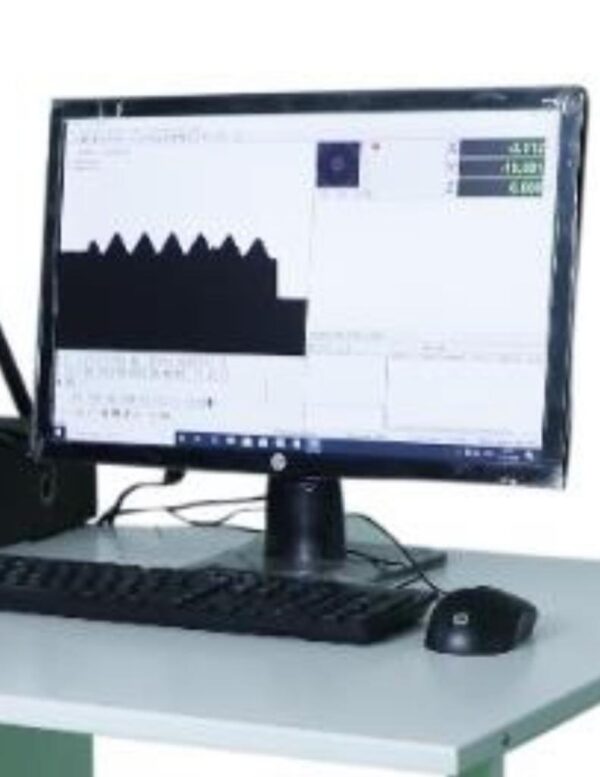

Here is the solution, our fully automated vision software based profile projector detects 1000 points and reports on screen the dimensional results as shown in the video.The software would be on your name and is valid for life time-licensed.

We also supply all the measuring components calibrated by NABL accredited master instruments so that accuracy and uncertainty are never a concern for our clients.

Description

IEC 60502-1 and EN 50525 describes about the requirement of exact dimension measurement of the insulation, inner jacket and outer jacket of a cable and it’s cores. Generally such test are performed also just before Tensile strength and elongation tests as well as before ageing tests.It is very important to and most critical characteristics of a cable which determines the overall performance in application.

Hence it is always adapted and suggested to Cable manufacturers to do the dimension inspection on the first and last samples of extrusion process. Not only for Quality parameters but wall thickness is also a major player in deciding Cost of the cable , hence an optimization with high accuracy is the need of this highly competitive market.

Here is the solution, our fully automated vision software based profile projector detects 1000 points and reports on screen the dimensional results as shown in the video.The software would be on your name and is valid for life time-licensed.

We also supply all the measuring components calibrated by NABL accredited master instruments so that accuracy and uncertainty are never a concern for our clients.

Fully automated one click Cable measurement vision series Table top profile projector. It is capable of measuring 10000 readings of a cables ring/sector/hexagonal/flat samples etc. Color % measurement module and automated data control & reporting.

1) User friendly full part programming
2) Video edge detection
3) Concentric
4) Circularity
5) Trend Analysis
6) Tolerance Settings
7) Width Deviation Analysis
8) Customized Report Generation
9) EN 60811-1-1 Reports
10) IS: 10810 Reports
