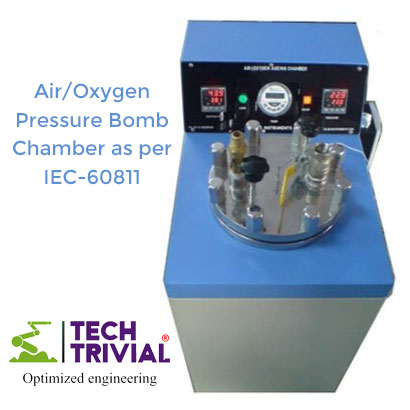

Air Pressure Chamber | Air/Oxygen Pressure Bomb Chamber as per IEC-60811
<p class="stock in-stock"></p>
Air/ Oxygen Pressure Chamber or also known as Oxygen/Air Bomb Apparatus is used to test the resistance of the rubber parts against aging under Oxygen Pressure and Heat.
Air Pressure Chamber | Air/oxygen bomb test Chamber as per IEC-60811
The air pressure chamber test is used for heat aging of samples under oxygen air pressure. It is applicable for insulation and sheath of electrical cables. It is also used to aging for vulcanized rubber for change in tensile strength & elongation of the material.
Every Tech Trivial Air pressure chamber gives you exactly what you need: accurate measurements, consistent, reliable performance, best possible safety, and best possible warranty available.
The Air Bomb Apparatus is designed to test rubber parts against resistance to ageing. The parts of rubber are aged in an atmosphere of oxygen under pressure and an elevated temperature for a specified duration and then allowed to condition at room temperature at specified time.
The Air Bomb Apparatus consists Pressure Chamber designed to retain an internal atmosphere of Oxygen under pressure with provision for placing rubber test pieces. The chamber is fitted with a specialized heating arrangement. The working chamber is made up of Stainless Steel 6mm think sheet provided with a lid and special gasket to prevent leakages. The Chamber is provided with a digital PID controller (Fuji, made in JAPAN)
Pressure Gauge/Pressure regulator to read and control the pressure digitally, inlet/outlet valves for admitting and releasing oxygen and a safety valve (made in USA)
Model No. : D1017
Standard compliance:
It is in line with IS: 10810, IS: 10810, Appendix A of IS 6380 – 1984, and ASTM D 572
Features:
Doubled walled chamber with inner chamber of 8 to 10 mm wall thickness.
Chamber Size: 150mm (Diameter) x 300mm (Height)
Temperature Control : Digital PID Controller, +/- 1-2oC
Pressure : 0 to 22 kg/cm2, LC 0.1 kg/cm2
Pressure Control : Using Digital indicating Controller
Heating: Dry heating using Jacket Heater
Three-layer safety for over pressure
You can also check out our more Machinery Products.
Air Pressure Chamber | Air/oxygen bomb test Chamber as per IEC-60811
- Size of the Chamber: 150mm Dia X 300mm Depth
- Oxygen/Air Pressure: Up to 21kg/cm2
- Temperature: Ambient to 1500 C
- Temperature Accuracy: +/- 2 Deg. C
- HMI Touch Screen Operation
